Multi Fluid Industrial Filter Housing

Model: JTGSF

Brand: JHENTEN

High flow industrial-grade filter
JTGSF Multi Fluid Industrial Filter Housing is precision filter which is specially designed for industrial field , It can be applied to various chemical materials and meet the requirements of different flow.

Detail Description

JTGSF Multi Fluid Industrial Filter is precision filter which is specially designed for industrial field , It can be applied for various chemical materials and meet the requirements of different flow.

The filter housing using side entry & bottom out flow method, it ensure that the material liquid does not overflow when replace cartridge in process.The filter housing can be design to three-stage structure, shell can be opened from top and bottom,the filter can be absolutely disassemble. For the application of some very harsh cleaning,the filter can full angle cleaning.

JTGSF Multi Fluid Industrial Filter Housing use many times polishing process, ensure that the material liquid contact surface roughness Ra≤0.4um,compliance with GMP/FDA requirement , the filter polished is mirror polished. It can be applied in high precision liquid filtration.

Feature

Filter can be made into the form of top and bottom openings, that is convenient to replace the filter, and can achieve thorough cleaning
The filter faceplate can be made into a detachable type, to achieve thorough cleaning
Equipped with two drain vent, respectively in the top of the disk and the bottom of the filter, drain convenient and completely
Side in and bottom out ,this design to ensure that the liquid can be completely drain, at the same time using the tangent export options, making sewage discharge thoroughly, worker is easy to Operating
More than 15 cartridges filter housing can used the design of swing arm + eyebolt or quick-open , easy to Operating, economical and practical

Application
Water Finish: all kinds of water filtration
Food &beverage: wine, mineral water, drinking water filtration
Chemical industry: all kinds of organic solvents, acid, alkali, filtration

Surface Finish

Treatment Type	Mechanical polishing, electrolytic polishing
polishing precision	Inner surface Ra≤0.6μm , Outside surface Ra≤0.8μm.

Operating Conditions

Max Operating pressure	0.6MPa,、1.0MPa
Max Operating Temp.	150℃

Material

Filter shell	304, 316L
Vent valve , drain valve	304, 316L
Eyebolt	304
Stabilizer blade	304
O-ring	EPDM, PTFE, Viton, Silicone

Connection

Shellconnection	Flange (Eyebolt)
In-outletN1, N2	Tri-clamp
Pressuregauge N3	1.5”Tri-clamp
Ventvalve N4 (optional)	1/2” Tri-clamp (less than 12pcs) 1.5” Tri-clamp (more than 15pcs)
Ventvalve N4 (optional)
Drainvalve N5(optional)	1” Tri-clamp
Cartridgesconnection	222 type, 226 type, DOE type

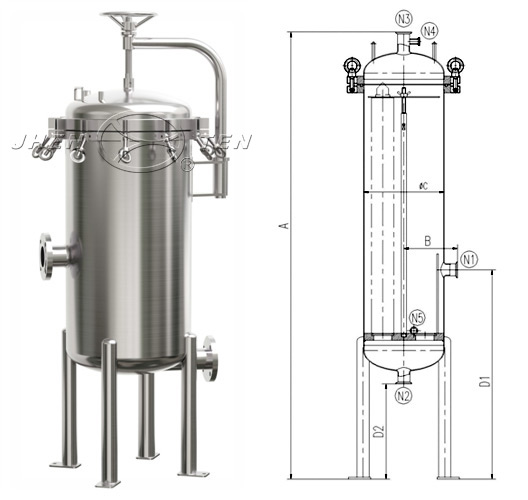

Structure

DOE type cartridge

Dimension Parameters	3pcs(4pcs)			5pcs(6pcs)
	20”	30”	40”	20”	30”	40”
A：Total height ( excluding pressure gauge)	1123	1373	1623	1145	1395	1645
B：The distance from inlet to center	142			165
C：Diameter	Φ204			Φ250
D1: The height from inlet N1 to the ground	540			660
D2：The height from outlet N2 to the ground	300			300
In-outlet N1, N2 dimension	1.5”/2”			1.5”/2”/2.5”

7pcs			8pcs
20”	30”	40”	20”	30”	40”
1145	1395	1645	1170	1420	1670
176.5			190
Φ273			Φ300
660			660
300			300
1.5”/2”/2.5”			1.5”/2”/2.5”/3”

9pcs(10pcs)			12pcs(11pcs)
20”	30”	40”	20”	30”	40”
1170	1420	1670	1170	1420	1670
202.5			215
Φ325			Φ350
660			660
300			300
1.5”/2”/2.5”/3”			1.5”/2”/2.5”/3”

The above-mentioned data is the standard, it can customize according tocustomer's requirements

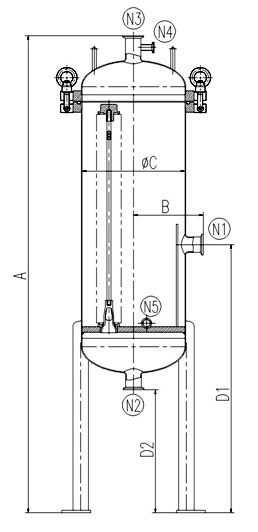

Structure

Dimension Parameters	3pcs(4pcs/5pcs)			6pcs
	20”	30”	40”	20”	30”	40”
A：Total height ( excluding pressure gauge)	1123	1373	1623	1123	1373	1623
B：The distance from inlet to center	142			149.5
C：Diameter	Φ204			Φ219
D1: The height from inlet N1 to the ground	530
D2：The height from outlet N2 to the ground	300			300
In-outlet N1, N2 dimension	1.5”/2”			1.5”/2”/2.5”

7pcs(8pcs)			9pcs
20”	30”	40”	20”	30”	40”
1163	1413	1663	1170	1420	1670
165			176.5
Φ250			Φ273
650
300			300
1.5”/2”/2.5”			1.5”/2”/2.5”/3”

10pcs(11pcs/12pcs)
20”	30”	40”
1170	1420	1670
190
Φ300
650
300
1.5”/2”/2.5”/3”

The above-mentioned data is the standard, it can customize according tocustomer's requirements.

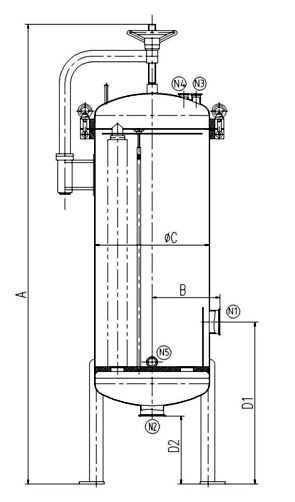

Structure

Dimension Parameters	15pcs(18pcs)	21pcs	24pcs(27/30pcs)
Dimension Parameters	40”	40”	40”
A：Total height ( excluding pressure gauge)	1947	1959	2026
B：The distance from inlet to center	240	265	290
C：Diameter	Φ400	Φ450	Φ500
D1: The height from inlet N1 to the ground	682	694	714
D2：The height from outlet N2 to the ground	300
In-outlet N1, N2 dimension	3”/3.5”/4”

36pcs	42pcs	48pcs(54pcs)
40”	40”	40”
2036	2044	2067
315	340	365
Φ550	Φ600	Φ650
729	734	744
300
3”/3.5”/4”

56pcs
40”
2162
390
Φ700
808
350
3”/3.5”/4”

The above-mentioned data is the standard, it can customize according tocustomer's requirements.

Selection Table

	［Qty.of cartridge］		［Model of cartridge］	［Cartridges connection］	［Shell material］	［In- outlet Connection］	［O-ring］
JTGSF	12R		20	S	4	K	E
	3R= 3pcs	21R= 21pcs	20=20” cartridge	S=226 type	4= 304	K=Tri-clamp	E=EPDM
	5R= 5pcs	24R= 24pcs	30=30” cartridge	T=222 type	6= 316L	F=flange	P=PTFE
	7R= 7pcs	36R= 36pcs	40=40” cartridge	D=DOE type		L= screw thread	V=Viton
	8R= 8pcs	42R= 42pcs					S=Silicone
	9R= 9pcs	48R= 48pcs
	12R= 12pcs	56R= 56pcs
	15R=15pcs
