QN Series spherical concentrator

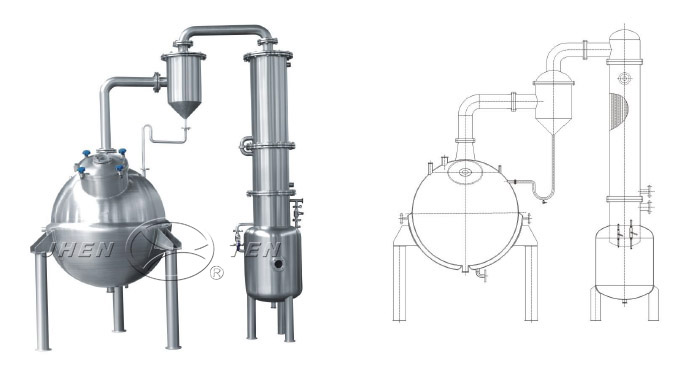

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.
The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.

Detail Description

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy,、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.

The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.

Technical parameters

Model	QN-300	QN-500	QN-700	QN-1000	QN-1500
Evaporation capacity（kg/h）	70	120	145	195	230
Preassure in jacket（Mpa）	0.25
Vacuum degree（MPa）	0.08
Heating area（㎡）	1.3	1.6	2.7	3.1	3.3
Condensation area（㎡）	2.4	4	5	10	15
Dimensions(mm)	1900x1100x2300	2030x1200x2500	2100x1300x2600	2335x1520x2765	3000x1650x3700
Equipment weight（kg）	350	480	610	950	1150
